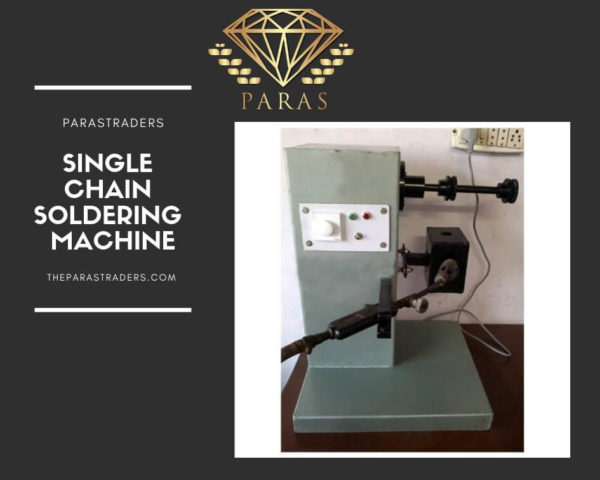

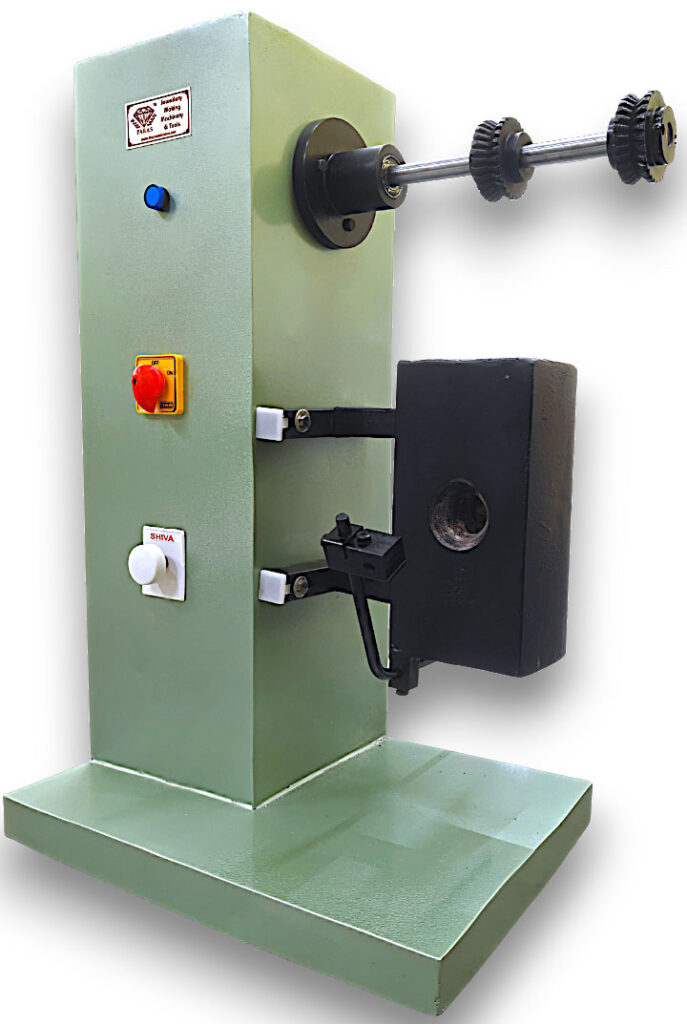

| Product Name: | Single Chain Soldering Machine |
|---|
| Application | Gold & silver jewellery chain soldering |
|---|
| Heating method | Gas flame / micro-flame |
|---|
| Fuel | LPG; Butane/LPG-air mix option |
|---|
| Gas pressure | Adjustable through regulator |
|---|
| Gas control | Fine-adjustable brass needle valve |
|---|
| Speed control | Variable-speed control |
|---|
| Working speed | Up to approx. 200 RPM, depending on chain/design |
|---|
| Chain diameter | Approx. 0.50–3.00 mm for the broader-range type |
|---|
| Fine-chain option | Approx. 0.20–1.00 mm, depending on tooling |
|---|
| Compatible metals | Gold, silver and suitable jewellery alloys |
|---|
| Gold purity | Suitable for different karats; final settings depend on alloy |
|---|
| Silver | 925 and other silver alloys |
|---|
| Solder | Gold/silver solder wire, strip or suitable pre-applied solder |
|---|
| Flux | As required by the solder/alloy |
|---|
| Motor | Variable-speed geared motor |
|---|
| Electrical supply | 220 V AC, 50 Hz |
|---|
| Electrical phase | Single phase |
|---|
| Electrical consumption | Approx. 100–500 W, depending on configuration |
|---|
| Controller | Speed controller + ON/OFF + emergency stop |
|---|
| Flame adjustment | Manual precision adjustment |
|---|
| Torch | Fine-tip jewellery gas burner |
|---|
| Cooling | Generally air cooled |
|---|
| Approx. dimensions | Around 45 × 35 × 50 cm to 55 × 40 × 70 cm, depending on model |
|---|
| Approx. weight | 20–35 kg |
|---|
| Operation | Automatic / semi-automatic |
|---|
