A Jewellery Chain Machine Is Used To Manufacture Different Types Of Jewellery Chains With Precision And Consistency. It Supports Accurate Chain Formation, Uniform Dimensions, And Smooth Operation To Maintain Reliable Production Quality. This Equipment Helps Jewellery Manufacturers Improve Productivity While Achieving Consistent Results Across Different Chain Designs And Manufacturing Requirements

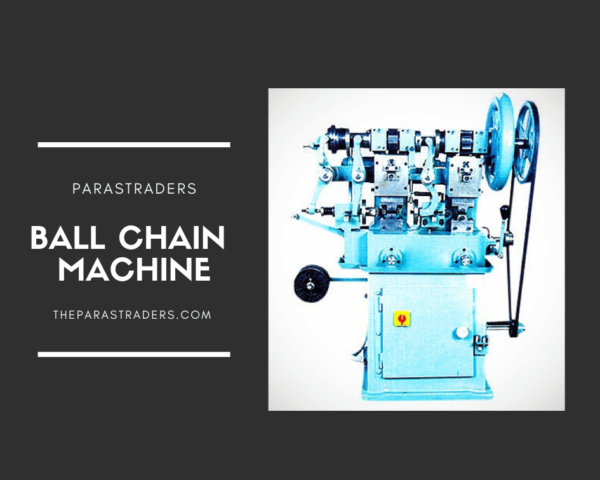

| Product Name: | Ball Chain Making Machine |
|---|---|
| Application | Gold & Silver Jewellery Ball chain |
| Suitable Material | Gold, Silver, Models, Brass |
| Operation | Automatic |
| Ball Diameter | 0.66-3.00mm, Model/ Dye |
| Wire Diameter | 0.25 mm, Model |
| Production Speed | 3m/min: ball making Variants 70,200 Balls/min |
| Motor | 1 Hp |
| Power consumption | 0.75 Kw |
| Valtage | 220V |
| Phase | Sinlge Phase |
| Machine material | Dye Steel/ heavy-duty Construction |
| Automation Grade | Automatic |
| Control | Automatic/ Digital control |
| Lubrication | Oil tank – model dependent |

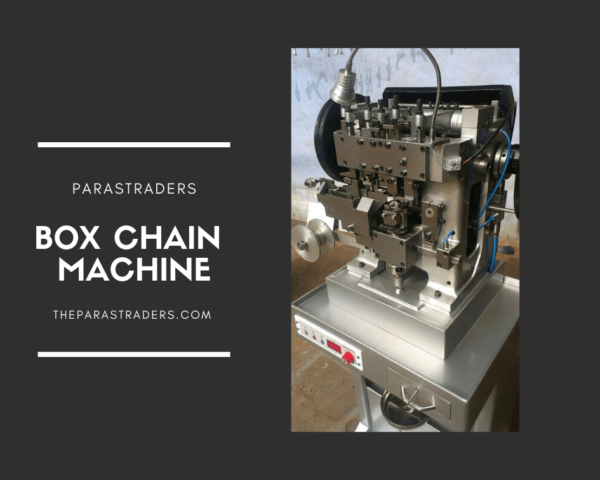

| Product Name: | Box Chain Machine |
|---|---|
| Application | Gold & Silver jewellery Box chain |
| Chain type | Box/ venetian chain |
| Material Suitability | Gold, Silver, Copper |
| Wire Diameter | 0.18-0.50mm, Model |
| Chain Size | 0.5- 1.0mm Model |
| Production capacity | 5m/min |
| Power consumption | 0.75 Kw |
| Voltage | 220V |
| Phase | Single phase |
| Station | Single Station |
| Oil Tank | yes |
| Power Type | Electric |
| Construction | Stainless Steel/Dye Steel |
| Automation Grade | Automatic |

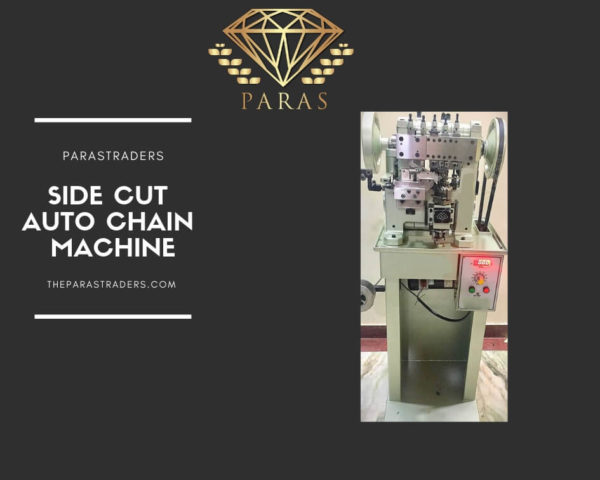

| Product Name: | Side-Cut Auto Chain Machine |
|---|---|
| Machine | Fully Automatic Side-cut cable chain making machine |
| Application | Gold & Silver Jewellery chain manufacturing |
| Wire Range | 0.20-1.00mm, minimum |
| Production | minimum 300 links/min |
| Chain Size | 0.5- 1.0mm Model |
| Power | Approx. 0.5Kw |
| Electrical | 220V, 50Hz Single Phase |
| Drive | Induction motor with AC/Variable Speed Drive |
| Lubrication | Forced Automatic Oil lubrication |
| Wire Tensioner | Provided |
| Tooling | Carbide, Interchangeable |
| Control | Automatic Electronic/HMI Control |
| Safety | Emergency Stop and Protective Guarding |
| Construction | Heavy-duty Industrial-grade steel |
| Approx weight | 150-170 Kg |
| Application metal | Gold & Silver |
| Product Name: | Side Cut Chain Machine |
|---|---|
| Machine type | Automatic Jewellery Machine |
| Suitable Material | Gold & Silver |
| Chain Types | Curb/ Kodi, Anchor, cable, rope, Figaro, Box |
| Operation | Automatic |
| Production Speed | 5m/min. |
| Wire Diameter | 0.18-0.50mm, Model/chain type |
| Chain Size | 0.5-10mm, model |
| Power consumption | 0.5-0.75 KW |
| Phase | Single phase |
| Voltage | 220V |
| Frequency | 50Hz |
| Station | Single Station |
| Drive | Electric |
| Control | Digital/Automatic control |
| Lubrication | oil Tank/ Forces Lubrication – Model Dependent |
| Body/construction | Heavy-duty Stainless Steel/Dye Steel |
| Safety | Safety cover / Guard |

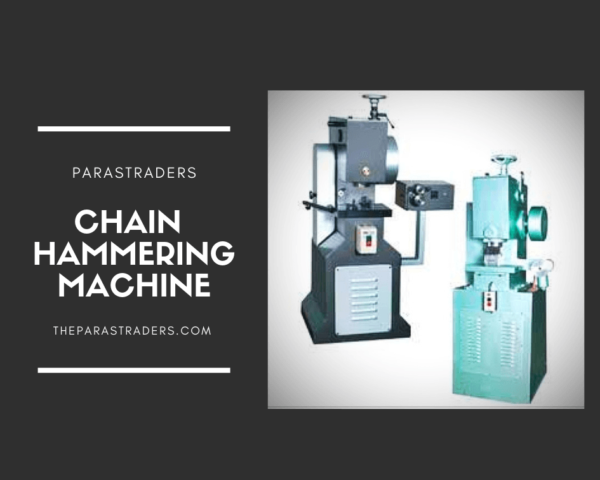

| Product Name: | Chain Hammering Machine |
|---|---|
| Machine type | Chain Hammering Machine |
| Application | Gold & Silver Jewellery chain |
| Suitable Metal | Gold, Silver & Copper |
| Operation | Automatic/ Semi-Automatic |
| Hammering | Single side/Multi Side |
| Chain size | 0.3mm-3.5mm |
| Production Speed | 5-20m/min |
| Motor power | 1-3 Hp |
| Electrical Supply | 220V, 380V, 50Hz |
| Phase | Single Phase/ Three Phase |
| Hammering capacity | 5Ton/10Ton/15Ton |
| Chain types | curb, Figaro, Anchor, cable, rope etc |
| Machine Body | Mild Steel/ Stainless Steel |
| Control | Automatic controls |
